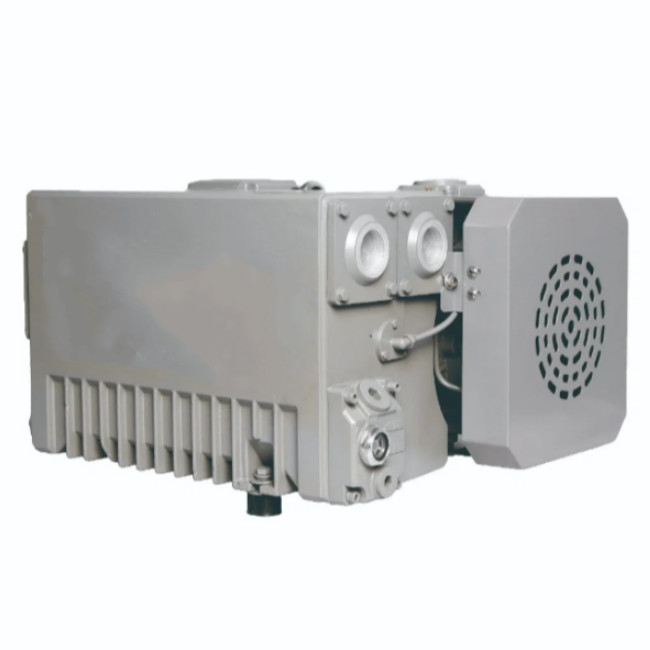

Single Stage Rotary Vane Vacuum Pump Product Description:
A typical rotary vacuum pump is comprised of a housing, a rotor and a series of radially moving vanes, which come in dry-running or lubricated versions (the latter are the most commonly used in the majority of industrial applications). The rotor is generally the only continuously moving vane vacuum pump part. There's also a working chamber inside the housing, which is divided into two separate compartments by the rotor and vanes. Many vane vacuum pumps also include an inlet valve as a safety feature.
Rotary vane vacuum pumps are available in single-stage and two-stage versions. The stages refer to the number of times that compression actually occurs. Two-stage pumps are also able to attain a lower pressure than single-stage pumps, due to the fact that gas is only admitted during the high pressure stage.
Rotary vane vacuum pumps are ideally suited for a wide range of low and medium vacuum applications such as general and chemical laboratory, analytics, freeze drying, process engineering and more. A rotary vane pump works via positive displacement, which is when volumes of air or gas are confined within a closed space and are compressed when the space is mechanically reduced.
Single Stage Rotary Vane Vacuum Pump Features:
The entire body of the pump is coated with heat-cured paint.
The pump is produced according to the DIN standard in Germany.
A liquid-level indicator is installed for observation during start-up.
The impeller is made of nodular iron or steel, and is welded to ensure high stability and a long lifespan even in harsh conditions.
The direct-drive coupling is made of highly durable polyurethane elastic material, which ensures pump stability and a long lifespan.
A top-quality mechanical seal is also available as an option. This seal is immune to air leakage and specifically designed for toxic gas applications.
Single Stage Rotary Vane Vacuum Pump Technical Parameters:
| Product Model | 50/60Hz | HT063 |
| Pumping Speed | 50Hz | 63m³/H |
| 60Hz | 76m³/H |
| Ultimate Pressure | mbar | 0.1 |
| Inlet Diameter | | G1 1/4'' |
| Voltage | 50Hz | 220-240/345-415V |
| 60Hz | 220-275/380-480V |
| Motor Power | kW | 2.2 |
| Current (A) | 50Hz | 8.5/4.9 |
| 60Hz | 9.2/5.3 |
| Rotate Speed | r/min | 1440/1720 |
| Noise Level | dB | 63 |
| Oil Volume | L | 2.0 |
| Net Weight | kg | 55 |

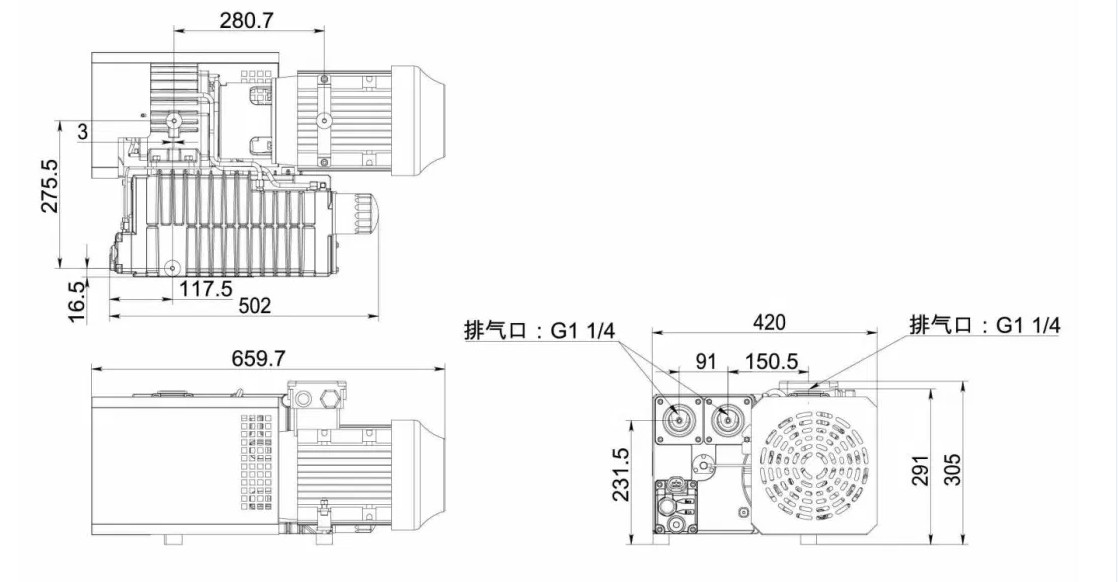

Single Stage Rotary Vane Vacuum Pump Installation Instructions:
Support and Services:
Our Industrial Vacuum Pump product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to assist with installation, maintenance, and troubleshooting to minimize downtime and maximize efficiency. We also offer training and education programs to help customers get the most out of their equipment. In addition, we provide a range of repair and replacement services to keep your vacuum pump running smoothly. Contact us for more information on our technical support and services.
Packing and Shipping:
Product Packaging:
- Industrial Vacuum Pump
- User Manual
- Power Cord
- Accessories Kit
Shipping:
- Shipping Method: Ground
- Expected Delivery Time: 3-5 business days
- Shipping Cost: Free
- Ships From: [Company Name] Warehouse
- Shipping Restrictions: Not available for international shipping
