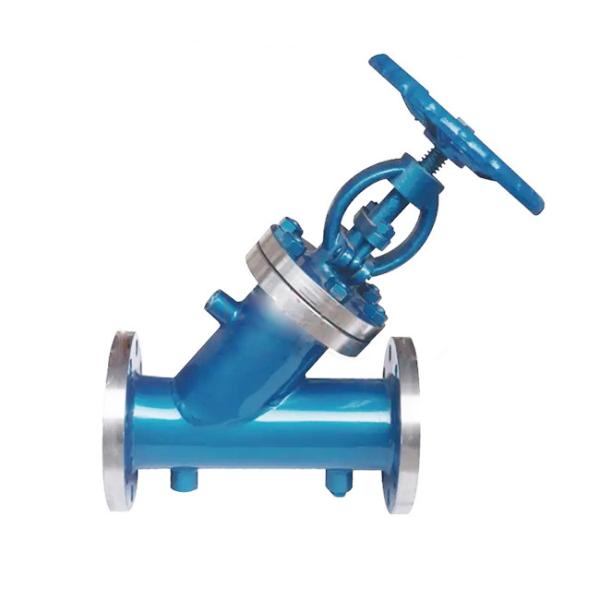

Insulated Stop Valve Simple structure For Chemical Industry

Name: Insulated Stop Valve Simple structure For Chemical Industry
Brand: HUATAO
Price: 100 USD

Buy cheap Insulated Stop Valve Simple structure For Chemical Industry product

Brand Name : HUATAO

Model Number : HT-Stop Valve

Certification : ISO9001

Place of Origin : China

MOQ : 1 SET

Price : USD 100-600 / Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 sets / month

Delivery Time : 10-15 days after receiving deposit

Packaging Details : Wooden box

Product name : Insulated Stop Valve

Nominal Pressure : 2.5-6.4

Clamshell test preasure : 3.75-9.0

Seal up test preasure : 2.75-6.6

Applicable temperature : ≤200

Applicable medium : nitrate

Contact Now

Small Working Stroke Insulated Stop Valve For Chemical Industry

Insulated Stop Valve Description

Insulated stop valve, mainly used in petroleum, chemical, metallurgical, pharmaceutical and other types of systems to transport high viscosity media will solidify at room temperature, DC jacketed insulation stop valve insulation jacket welded to the valve between the two flanges, the valve's side, the bottom of the two connections set up with the insulation jacket port. DC insulation disconnecting valve is especially suitable for chemical industry, fertilizer industry pipeline, the jacket connotation into the steam can prevent the media crystallization.

Insulated Stop Valve Advantages

1, Simple structure, manufacturing and maintenance is relatively convenient;.

2, Small working stroke, short opening and closing time.

3, Good sealing, small friction between sealing surfaces, long life.

4, Suitable for larger viscosity, easy to coking medium.

Insulated Stop Valve Specification

Nominal Preasure PN(MPa)	Test Pressure		Applicable temperature	Applicable medium	Insulation sleeve pressure (MPa)
	clamshell	seal up
2.5	3.75	2.75	≤200	nitrate	≤1.0
4.0	6.0	4.4
6.4	9.0	6.6
2.5	3.75	2.75		nitrate
4.0	3.0	4.4
6.4	9.0	6.6

Insulated Stop Valve Simple structure For Chemical Industry

Please ask for pump details and price by inquiry@huataogroup.com. For any questions will reply within 24 hours.
