0.55-90kw Industrial Chemical Pump Gas Centrifugal Pump ISO9001 Approved

Material Cast Iron Stainless Steel Industrial Chemical Centrifugal Pump For Gas

Chemical Centrifugal Pump Description

This type of centrifugal pump is a single-stage single-suction (shaft-suction) corrosion-resistant centrifugal pump. The corrosive liquid pumped does not contain solid particles and has a viscosity similar to water. The temperature of the medium is -20°C~105°C, if necessary, cooling measures can be taken to reach a higher temperature.
Widely used in petroleum, chemical industry, metallurgy, electric power, papermaking, food, pharmaceutical, synthetic fiber and other industries.

Chemical Centrifugal Pump Range of properties

Chemical Centrifugal Pump Feature

Wider property range Higher efficiency Higher maintenance
This series of pumps has 40 basic types, 33 of which are double-speed (2900-1450r/min), and can reach 112 specifications after cutting the diameter of the impeller.

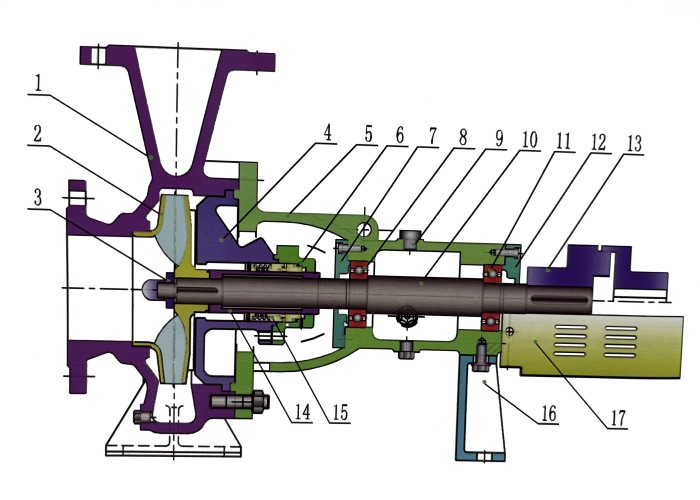

1. Pump body

2. Impeller

3. Impeller nut

4. Even after the line machine pump cover

5. Suspension

6. Mechanical sea gland

7. Bearing gland (pump)

8. Angular contact ball bearings

9. Pump shaft

10. Pump shaft

11. Angular contact ball bearings

12. Bearing gland (coupling)

13. Coupling

14. Shaft sleeve

15. Mechanical seal

16. Stent

17. Shield
