Paper Industry Without Blocking Leakage SS316 Centrifugal Pumps
Paper Pulp Centrifugal Pumps Description
The series of non-block and non-leaked centrifugal pumps is suitable for pumping a variety of different media as it is the single stage, single flow, volute centrifugal pump. This series has 19 models so that it can meet the requirements of operating conditions with the best performance. It is easy to maintain. When removing or installing the impeller, wear-resisting lining, pump cover, shaft seal, and bearing frame, you will remove the pump neither from the suction pipe nor the output pipe because of its process design. With two wear-resisting linings, the front and the back, it provides sufficient protection for the pump body and pumps cover to prolong its service life. To offer high efficiency, it opens the three-blade impeller.
Paper Pulp Centrifugal Pumps Application
This product is widely used in pulp manufacturing, sugar refining, chemical raw materials, Industrial wastewater environmental protection engineering, and municipal road engineering.
Paper Pulp Centrifugal Pumps Specification
| Product Name | Paper Pulp Centrifugal Pumps |
| Speed | 750,990,1480 and 2960r/min |
| Voltage | 380,6kV or 10Kv |
| Inlet and outlet diameter | 65mm-500mm |
| Flow rate | 20m-3300m/h |
| Head scope | 5m-100m |
| Operating temperature | the highest temperature of liquid≤120℃ |
| The maximum working pressure | 1.0MPaor1.6MPa, Special configuration can reach 1.6MPa or 2.5MPa |
| The medium | Concentration≤6% |
Huatao Supply The Spare Parts For All Kinds of Pump
Huatao Pumps Application

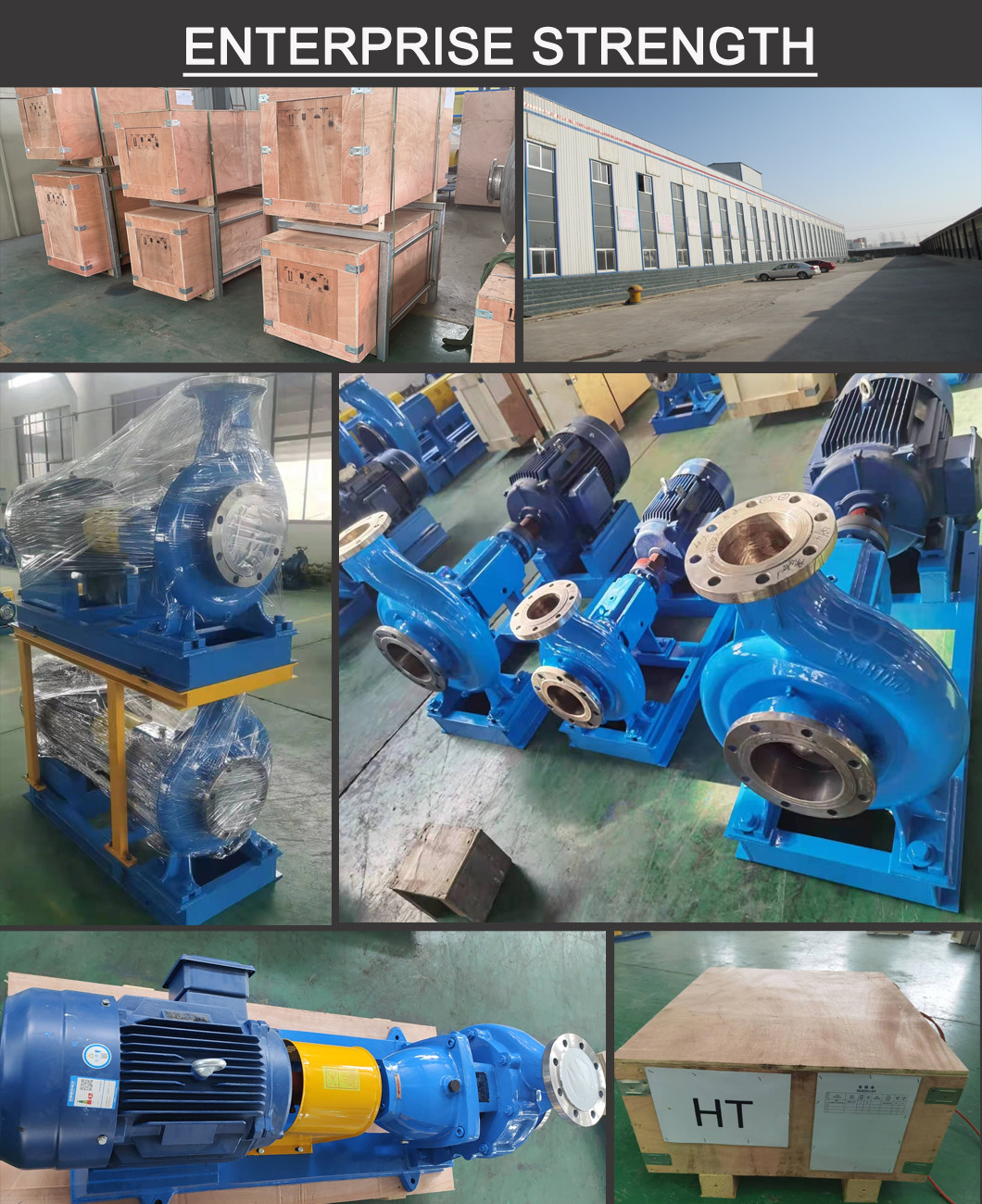

Huatao Pumps Package, Shipment, Workshop
Exhibition And Customer Visting
Please ask for pump details and price by chris@huataogroup.com, Whatsapp: 0086 137 0329 5214.
For any questions will reply within 24 hours.
